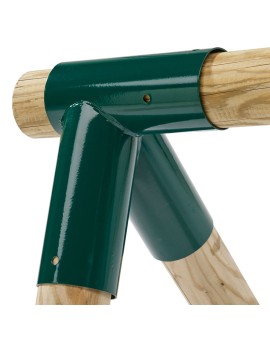

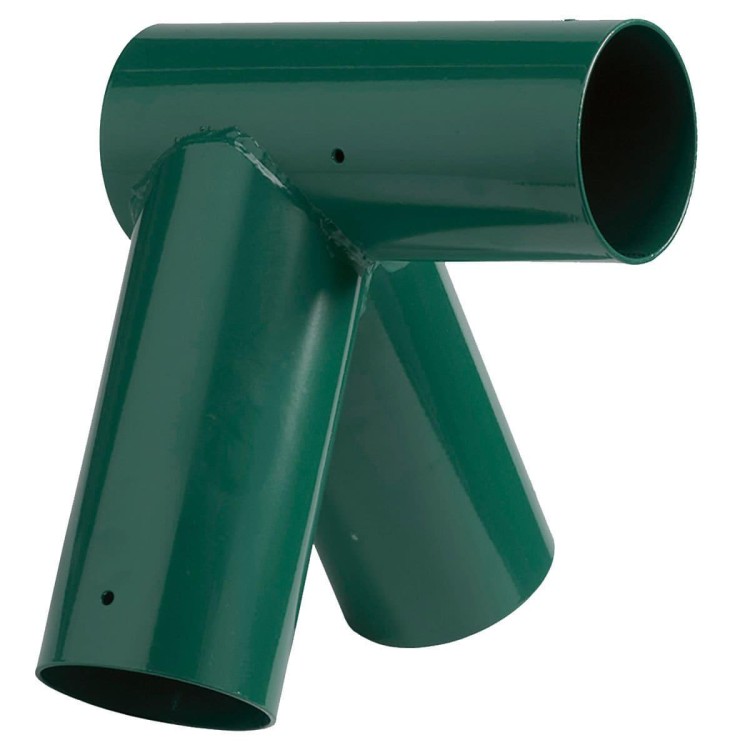

Straight Steel Corner Bracket MASGAMES for DIY Swings.
This essential steel component, 2.5 mm thick, allows you to build the base of your customized swing set with round posts, offering strength and durability.
Key Specifications:
Horizontal Opening (Top Beam): 10.3 cm Ø.
Openings for Legs: 8.1 cm Ø (with a 60º angle between them).
Straight 90º Angle (ideal for spaces with less depth).
Important: The wood must be slightly smaller than the opening diameter to prevent issues due to expansion. The price is per unit and does not include screws. Combine it with another unit or with a wall corner bracket.
Distribute top quality products that stand out in online sales!
Offers outdoor games and furniture manufactured in Barcelona. Avoid long delivery times and high import costs.
If you are a "do-it-yourself" enthusiast and want to create a totally custom swing set, this straight steel corner bracket is the essential component to get started. Designed to offer maximum strength and durability, it will allow you to build the base structure of your swing set with round wooden posts, adapting it to your space and design needs.
Features of Strength and Quality
This joint support is built to last, guaranteeing the safety of the structure. Its robustness is based on:
High-Strength Steel: Manufactured with 2.5 mm thick steel tubes, ensuring an extremely solid and reliable base.
Optimal Geometry for small spaces: 90º angle between the horizontal bar and the vertical legs for a firm joint and a 60º angle between the downward-facing legs. If you want a corner that provides more stability, you should opt for corners with an oblique angle.
Technical Specifications for Installation
Below, we detail the key measurements for the correct selection and assembly of your round timbers:
Steel tube thickness: 2.5 mm
Diameter of the HORIZONTAL opening (Top Beam): 10.3 cm Ø
Diameter of the DOWNWARD openings (Legs): 8.1 cm Ø
Diameter of the fixing holes: 10 mm Ø
Angle between the downward-facing legs: 60º
Angle between the horizontal bar and the vertical legs: 90º
Usage and Assembly Tips
The indicated price corresponds to one corner unit. For a complete swing set structure, you can combine it with another similar corner or with a MASGAMES wall corner if you wish to fix one end to a vertical surface.
ATTENTION regarding Wood: This component is designed to be used with round wood. It must be remembered that wood is a living material and can undergo dimensional changes due to expansion or contraction caused by humidity and temperature. To avoid breakages or fitting problems, we strongly recommend that the diameter of the wood you choose be slightly smaller than that of the corner opening.
Important Note: The screws for fixing the wood to the metal support are NOT included and must be purchased separately, thus ensuring you choose the most suitable type of screw for your timbers.

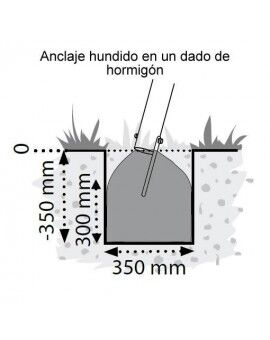

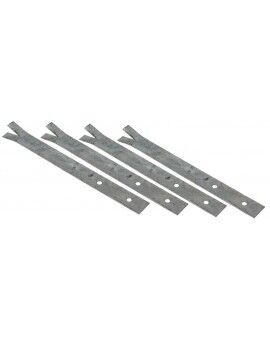

Set of four Flat anchors for Swings
Set of four Flat Anchors for Swings
Discover our Flat Anchor for Swings and take the fun to the next level. Designed with hot-dip galvanized steel, this anchor not only ensures stability but also provides...
Wooden Swing Chair - Quality and Fun for your Home!
Wooden Swing Seat
Discover our exclusive wooden and rope seat designed for swings for home use. Made with wood treated with inorganic salts to guarantee durability and resistance. The 180 cm...
Safe Fun for the Little Ones: Rubber Baby Seat with Stainless Steel Chains
Certified Safety and Quality for Commercial and Public Use
Introducing the Masgames Classic Rubber Baby Seat, specifically designed to ensure maximum safety and fun for...
Blue Plastic Swing Seat
Blue Plastic Swing Seat
Highlighted Features
High-Quality Material: Made from HDPE for exceptional resistance and durability.
Safety with Every Swing: Equipped with galvanized steel suspension rings and adjustment eights,...

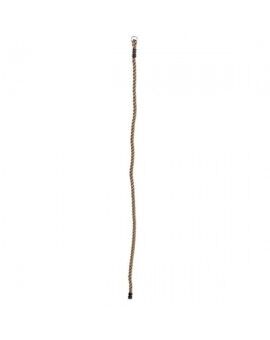

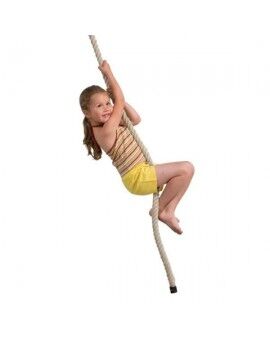

Robust Climbing Rope for Swings
Level Up the Fun: The Perfect Climbing Rope for Your Swing
Add a touch of adventure to your play area with our robust climbing rope, designed to challenge and entertain. With a length of 200 cm and a 25 mm diameter,...

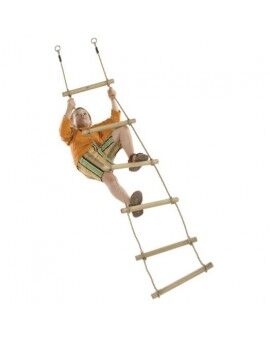

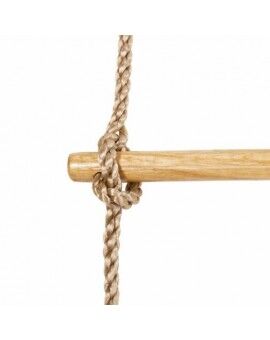

Long Rope Ladder for swings
With our innovative Rope Ladder. Crafted with hard wooden rungs 22 mm in diameter and 300 mm in length, this ladder redefines fun and safety with every climb.
The rungs are carefully intertwined with ropes 10 mm in...

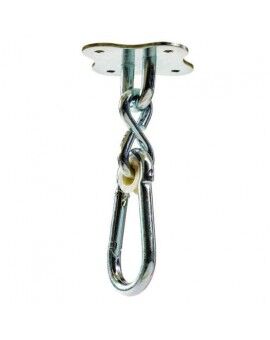

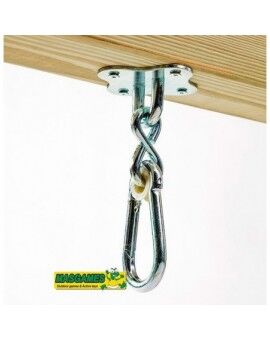

Fastening Hook to put a swing on the ceiling
